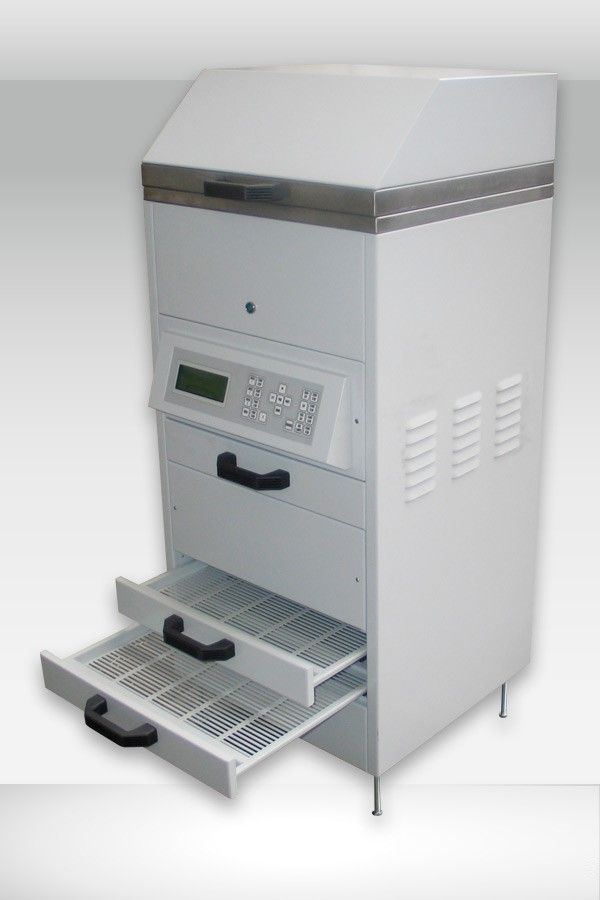

Water Wash
Specifications
- 9 channels controller of each working step simultaneously: Main exposure time, Washout time, Post exp. Time, Washout temperature, Dryer temperature, Dryer time (one for each drawer)
- Exposure section equipped with suction frame, granting, together with the high quantity of lamps, a uniform covering
- Water processing in stainless steel tank, via the orbital action of a plate holder table, overturnable in A1 model, and a set of brushes, adjustable in their height
- Dryer section composed by two drawers in model A4 and three in other models
- All functions can be accessed and operated from the front side
- Lamp hour counter
| A3 | A2 | A1 | A1 PLUS | |
|---|---|---|---|---|
| Max plate size (mm) | 370x520 | 530x760 | 710x890 | 790x1030 |
| Max plate size (inches) | 14''x20'' | 20''x29'' | 27''x35'' | 31''x40'' |
| UVA 09
exp. lamps |
9x40W L. 590 | 12x40W L. 900 | 15x40W L. 1200 | 17x40W L. 1200 |
| Stainless steel tank (l) | 27 | 50 | 110 | 130 |
| Wattage (kW) | 4 | 8 | 10 | 10 |
| Heater (W) | 1200 | 2x1200 | 4x1200 | 4x1200 |
| Electrical Supply | "230V (3PH + GND) 60Hz 400V (3F + N + GND) 50Hz" |
|||
| Overall size (LxWxH) (cm) |
74x92x120 | 109x98x120 | 145x115x135 | 145x125x135 |
| Weight (kgs) | 170 | 245 | 420 | 440 |
